Lifting height: 3-6m
Maximum lifting capacity: 3500kg
Minimum ground clearance: 250mm

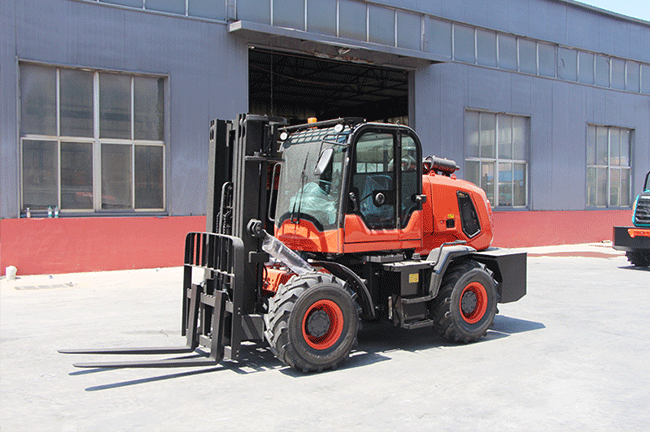

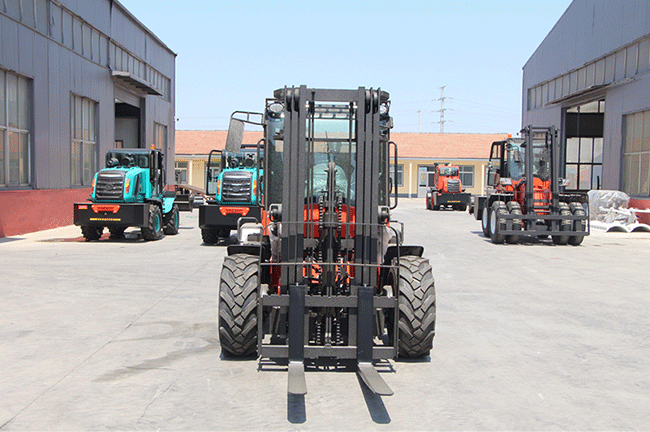

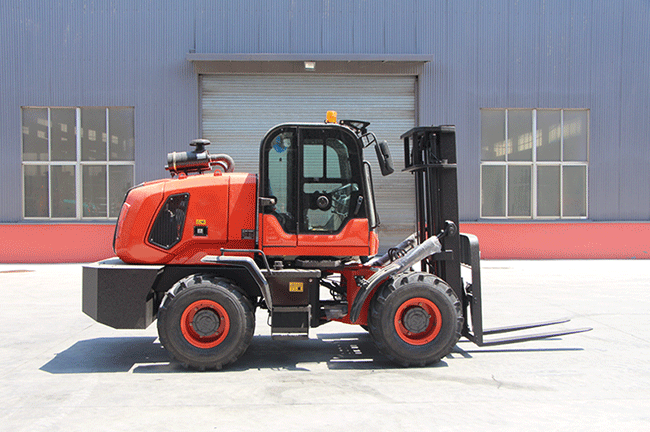

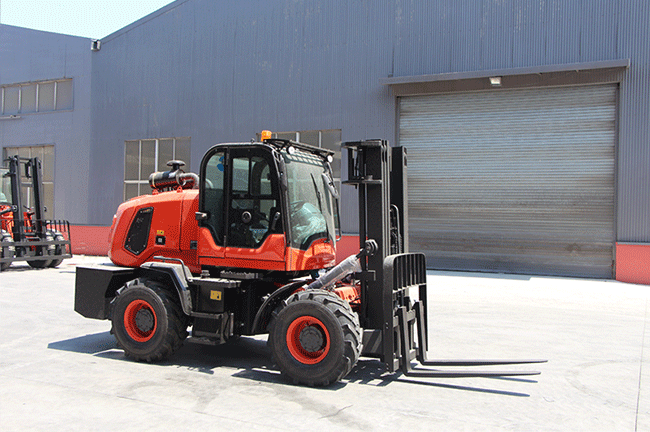

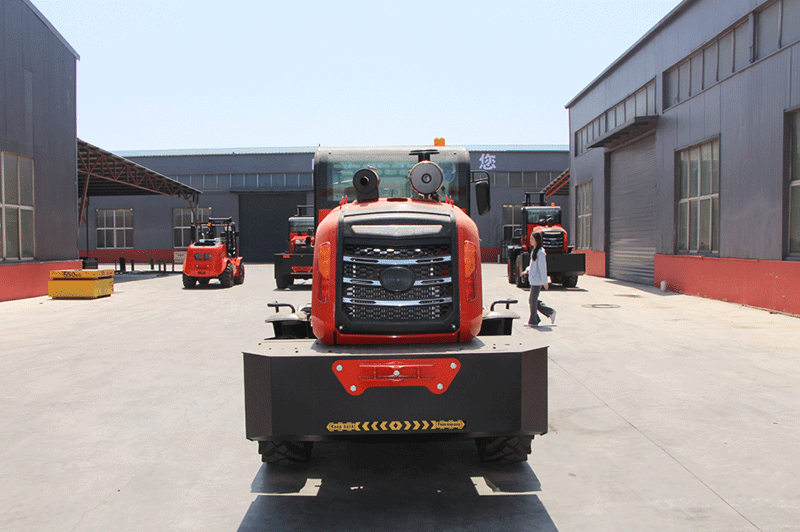

The JTYC35-1 is a 3.5-ton all terrain forklift designed for outdoor handling where a standard warehouse truck is not enough. With four-wheel drive, a 1,875 mm wheelbase and a vehicle weight of at least 4,100 kg, this rough terrain forklift is suited to gravel yards, ramps and uneven work sites while keeping a rated lifting capacity of 3,500 kg.
Its 3,000-6,000 mm lifting height, 30 km/h top speed and 490 Series diesel engine make it practical for loading, stacking and moving materials across larger outdoor job areas.
| Model | JTYC35-1 |
| Engine Model | 490 Series Diesel |
| Rated Lifting Capacity | 3,500 kg |
| Lifting Height | 3,000-6,000 mm |
| Wheelbase | 1,875 mm |
| Vehicle Weight | >= 4,100 kg |
| Dimensions (L x W x H) | 3,750 x 1,850 x 2,380 mm |
| Drive Mode | Four-wheel drive |
| Climbing Angle | <= 45 deg |
| Top Speed | 30 km/h |
Four-wheel drive and a climbing angle of up to 45 degrees help the JTYC35-1 stay usable on ramps, gravel lanes and uneven outdoor approaches.
A rated lifting capacity of 3,500 kg, paired with a vehicle weight of at least 4,100 kg, gives this forklift the substance needed for heavier outdoor handling tasks.
The 3,000-6,000 mm mast range supports both everyday loading work and higher stacking requirements in yards, farms and construction sites.
A 30 km/h top speed helps operators move between loading points and storage areas faster on larger work sites.
The 490 Series diesel engine fits outdoor operating conditions where diesel fueling, straightforward service and day-to-day reliability matter.
Contact us for pricing, mast height options and export arrangements for the JTYC35-1 all terrain forklift. Single and fleet orders welcome.
Submit your questions via the form below for a response within 1 business day.
