Lifting height: 3-6m
Maximum lifting capacity: 3500kg
Minimum ground clearance: 250mm

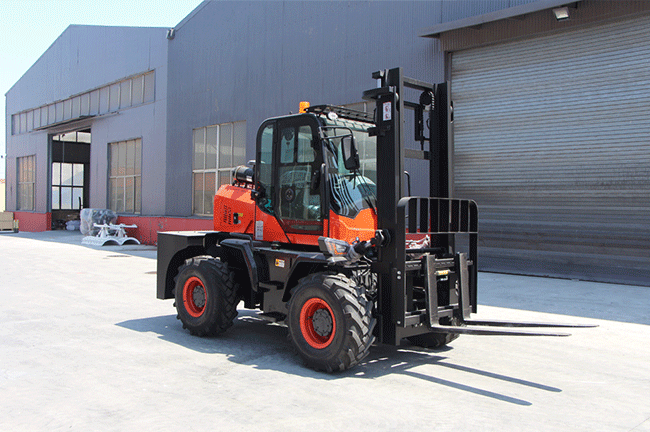

The JTYC35-2 is a 3.5-ton all terrain forklift built for outdoor handling where load stability matters as much as traction. With a 1,950 mm wheelbase, four-wheel drive and a vehicle weight of at least 4,300 kg, this rough terrain forklift is suited to slopes, gravel yards and uneven jobsite surfaces while keeping a 3,500 kg lifting capacity.
Its 3,000-6,000 mm lifting height and 30 km/h top speed make it useful for loading, stacking and moving between work areas on larger sites.
| Model | JTYC35-2 |
| Engine Model | 490 Series Diesel |
| Rated Lifting Capacity | 3,500 kg |
| Lifting Height | 3,000-6,000 mm |
| Wheelbase | 1,950 mm |
| Vehicle Weight | >= 4,300 kg |
| Dimensions (L x W x H) | 3,450 x 1,850 x 2,250 mm |
| Drive Mode | Four-wheel drive |
| Climbing Angle | <= 45 deg |
| Top Speed | 30 km/h |
The longer 1,950 mm wheelbase and vehicle weight of at least 4,300 kg help the machine feel more composed with rated loads on rough or sloped ground.
A 3,000-6,000 mm mast range gives one rough terrain forklift room for yard loading, site stacking and higher placement work.
Four-wheel drive with a climbing angle of up to 45 degrees helps maintain traction on dirt roads, ramps and uneven site approaches.
A 30 km/h top speed helps operators move between loading points, storage areas and outdoor work zones with less delay.
The 490 Series diesel engine keeps this forklift aligned with open-yard, farm and construction use where diesel fueling is standard.
Contact us for pricing, mast height options and export arrangements for the JTYC35-2 all terrain forklift. Single and fleet orders welcome.
