Lifting height: 3m
Fork length: 1070mm
Maximum lifting capacity: 3000kg

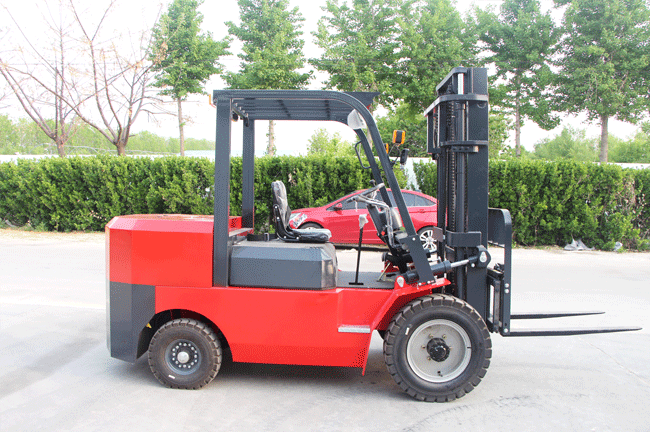

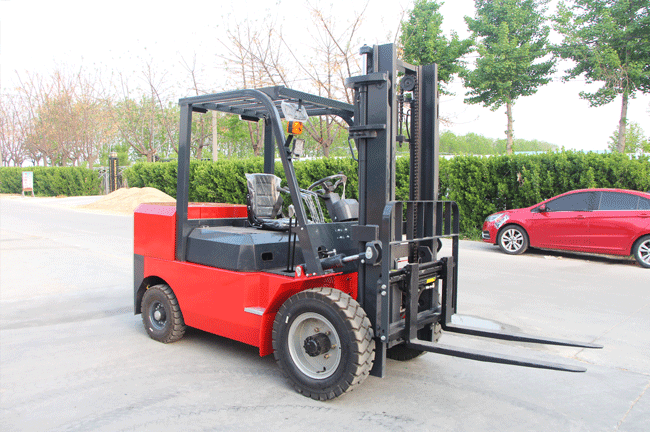

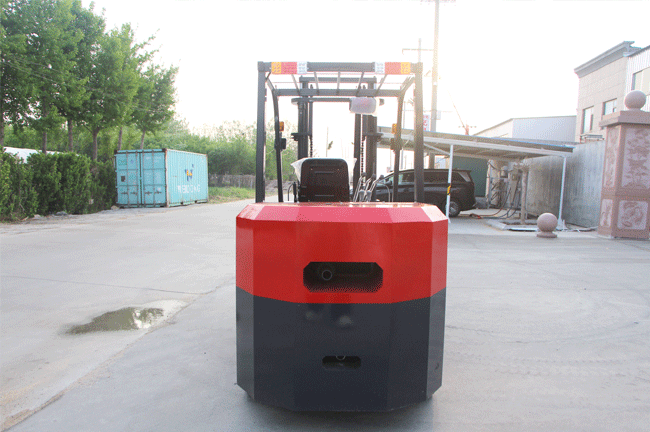

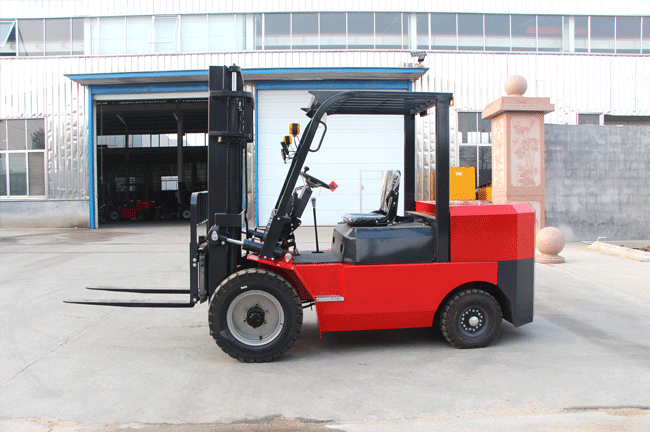

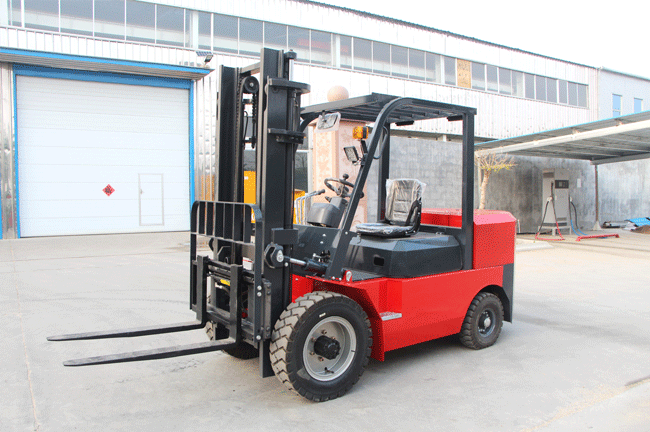

The JTC-30 is a 3-ton diesel forklift built for daily material handling where buyers need dependable lift capacity and straightforward diesel power. With a rated load capacity of 3,000 kg, a 3,000 mm lifting height and a Weichai / Weifang 45 kW engine, this heavy duty diesel forklift fits factory yards, loading areas and construction supply work.
Its 2,950 x 1,300 x 2,200 mm overall size and 1,070 mm fork length keep the machine practical for pallet movement, truck loading and routine site handling.
| Model | JTC30 |
| Rated Load Capacity | 3,000 kg |
| Lifting Height | 3,000 mm |
| Vehicle Size (L x W x H) | 2,950 x 1,300 x 2,200 mm |
| Fork Length | 1,070 mm |
| Front Tyres | 28*9-15 |
| Rear Tyres | 650-10 |
| Engine | Weichai / Weifang 45 kW |
A rated load capacity of 3,000 kg makes the JTC-30 suitable for daily pallet handling, bundled materials and general loading work.
The Weichai / Weifang 45 kW engine gives this diesel forklift the output needed for repeated lifting cycles and loaded starts during day-to-day operation.
A 3,000 mm lifting height covers common unloading, stacking and truck loading tasks without pushing the machine beyond its standard working range.
With an overall width of 1,300 mm, the forklift keeps a practical footprint for site lanes, loading bays and work areas where larger machines feel less flexible.
The 1,070 mm fork length supports regular pallet and material movement setups, keeping the machine aligned with everyday warehouse and yard handling needs.
Contact us for pricing and export arrangements for the JTC-30 diesel forklift. Single and bulk orders welcome.
Submit your questions via the form below for a response within 1 business day.
