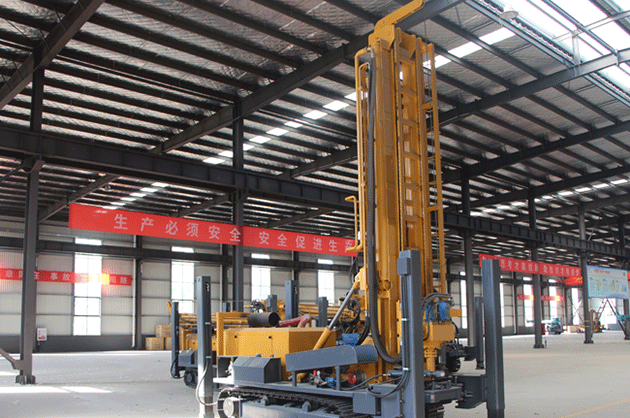

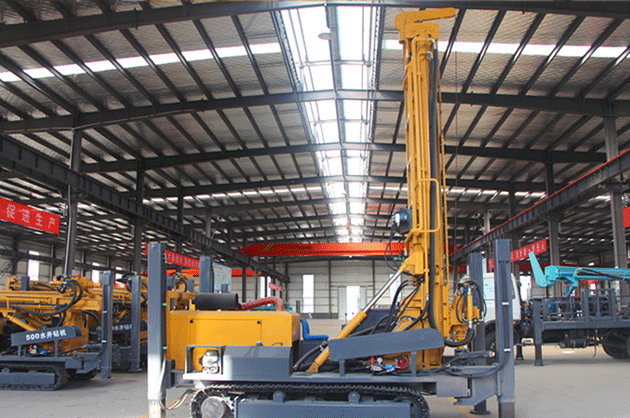

JTQZ-800 Water Well Drill Rig

Overview

The JTQZ-800 pneumatic water well drill rig is built for 800 m ultra-deep  drilling in deep water wells, hydrological exploration, geothermal projects  and industrial water supply work. With a 153 kW engine, 30 t lifting force,  a 140-400 mm hole range and 1.7-3.5 MPa working pressure, it is designed for  larger boreholes, heavier drill strings and deeper drilling work where smaller  rigs can lose speed and lifting margin.

Specifications

Key Features

1. Reaches 800 m Depth

With 1.7-3.5 MPa working pressure, 17-42 m³/min air consumption and a 153 kW  engine, the JTQZ-800 is equipped for drilling depths up to 800 m. This gives  it the air output and engine reserve needed for longer boreholes in demanding  deep-well and exploration projects.

2. Up to 400 mm Holes

A 140-400 mm hole range allows the rig to cover both standard deep wells and  larger-diameter boreholes that need wider casing. That gives contractors more  flexibility when a project calls for both depth and finished well capacity.

3. 30 t Pullback Power

The 30 t lifting force supports heavier drill strings and gives the rig more  margin when pulling tools and pipe from deep holes. That extra pullback helps  improve control and confidence on 800 m class drilling jobs.

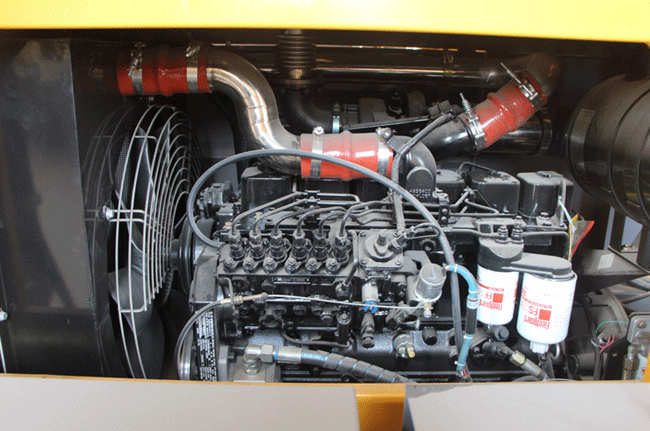

4. 153 kW Heavy Drive

A 153 kW power unit gives the JTQZ-800 the strongest engine output in this  series so far. It is set up for high-load drilling where deeper holes, wider  diameters and longer working cycles demand stronger and steadier power.

5. Fewer Rod Changes

With a 6.6 m single push length and drill pipe options up to 6.0 m, the  JTQZ-800 can reduce the number of rod additions during deep drilling work.  That helps save handling time and keeps long-hole operations moving more  efficiently.

Get a Quote

Contact us for pricing, brochures or custom configurations of the JTQZ-800  pneumatic water well drill rig.
