Self weight:1.3T
Dimensions:2.5*0.6*1.5m
Maximum operating radius:6m

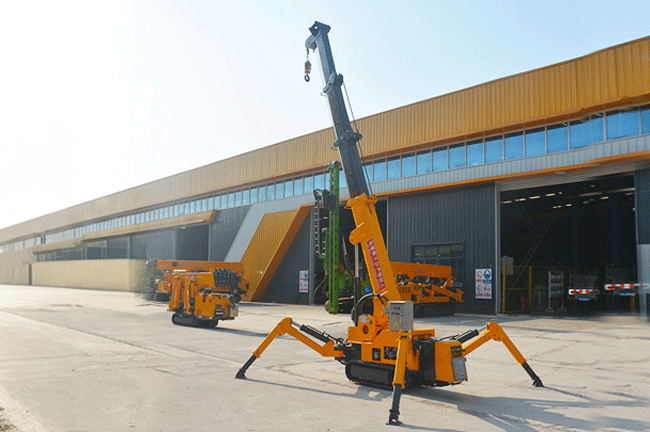

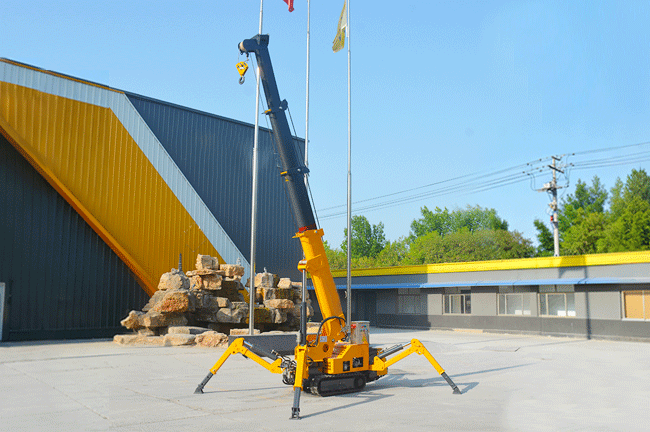

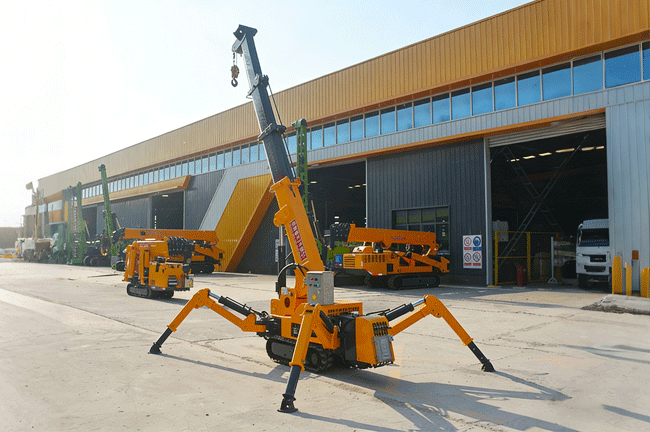

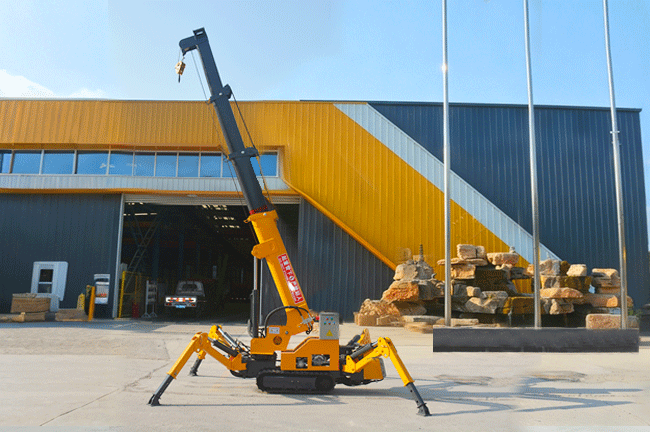

The JTZD-1.5T is a crawler spider crane built for lifting work where compact transport size, working radius and lift height all matter. With a 1.5 t lifting class, 6 m maximum operating radius and 6.5 m maximum above-ground lift, it is suited to equipment installation, indoor lifting and narrow-access job sites.
Its 1.3 t self-weight and 2.5 x 0.6 x 1.5 m machine size keep the body compact for tighter working conditions. The crane also combines a 2 m x 4-section telescopic boom, 6.5 m boom length, 0-78° boom angle, 0-8 m/min hook lifting speed and 25° gradeability for daily lifting operations.
| Model | JTZD-1.5T |
| Self-Weight | 1.3 t |
| Hook Lifting Speed | 0-8 m/min (4 ropes) |
| Telescopic Boom Form | 2 m x 4-section lifting arm (customizable) |
| Boom Length / Time | 6.5 m / 20 sec (customizable) |
| Boom Angle / Time | 0-78° / 13 sec |
| Maximum Above-Ground Lift | 6.5 m |
| Maximum Operating Radius | 6 m |
| Gradeability | 25° (36%) |
| Machine Size | 2.5 x 0.6 x 1.5 m |
1. 1.5-Ton Lift
The JTZD-1.5T is built in the 1.5 t lifting class for compact lifting work where stable load handling is needed in restricted-access spaces.
2. 6.5 m Height
A 6.5 m maximum above-ground lift gives the crane the vertical reach needed for installation, maintenance and site lifting tasks.
3. 6 m Radius
With a 6 m maximum operating radius, the crane can cover a practical working area before repositioning on site.
4. Quick Boom Action
The 2 m x 4-section telescopic boom reaches 6.5 m in 20 seconds, and its 0-78° boom angle adjusts in 13 seconds for faster positioning during lifting work.
5. Compact Body
A 2.5 x 0.6 x 1.5 m machine size and 1.3 t self-weight help the crane enter tighter work zones where larger lifting equipment cannot fit easily.
6. Climbs Job Sites
The crane supports 25° (36%) gradeability, helping it move more confidently across uneven ground and sloped working areas.
Contact us for full lifting data, configuration details and a quote based on your project requirements.
