Self weight:10.5T
Dimensions:5.9*1.8*2.3m
Maximum operating radius:18m

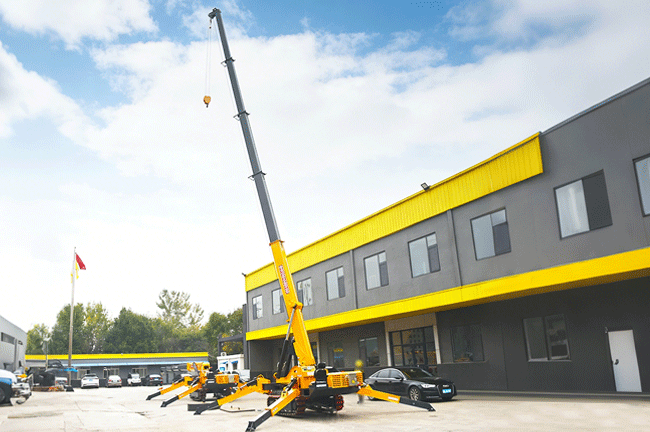

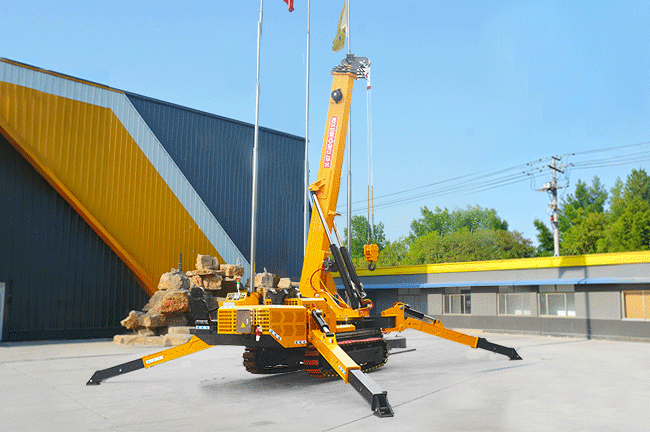

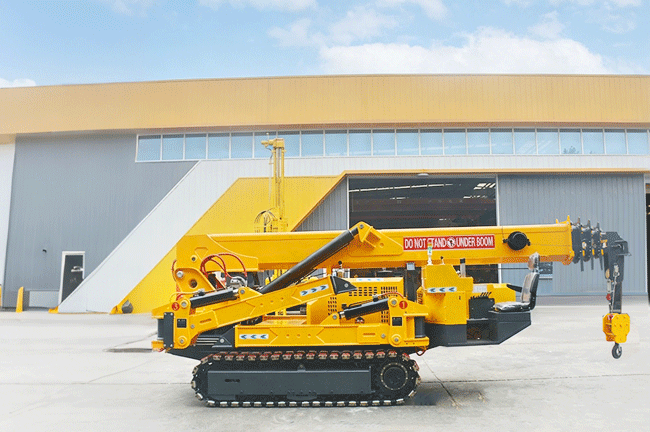

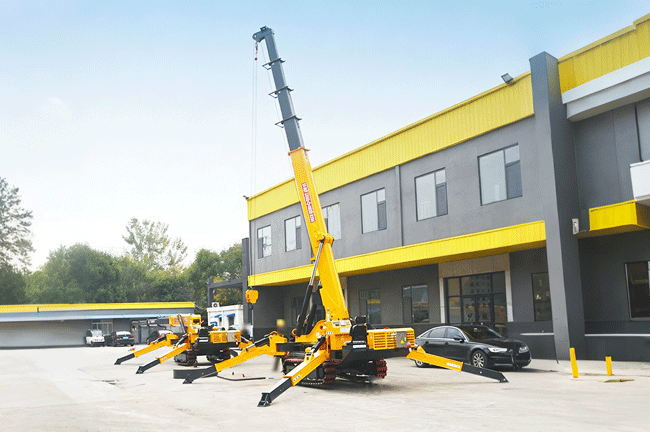

The JTZD-10T is a spider crane built for lifting work in access-restricted indoor and outdoor job sites. Based on the listed specifications, it offers a 21 m maximum above-ground lift, an 18 m maximum operating radius, a machine size of 5,900 x 1,800 x 2,300 mm and a 76 kW Yunnei engine for compact but capable material handling.
| Model | JTZD-10T |
| Self-Weight | 10.5 t |
| Maximum Operating Radius | 18 m |
| Maximum Above-Ground Lift | 21 m |
| Winch Hook Rising Speed | 11 m/min (4-rope), two-speed |
| Winch Wire Rope Specification | 12 mm x 100 m |
| Boom Length / Time | 12.3 m / 58 sec (adjustable) |
| Telescopic Boom Form | 5 m x 5-section lifting arm (Support customization) |
| Engine | Yunnei 76 kW (Support customization) |
| Battery Capacity | 12 V 45 Ah |
| Machine Size | 5,900 x 1,800 x 2,300 mm |
1. 21 m Lift Reach
A maximum above-ground lift of 21 m gives the JTZD-10T the reach needed for upper-floor installation work, plant maintenance and lifting jobs where the crane must work above obstacles or inside taller structures.
2. 18 m Working Radius
The listed 18 m maximum operating radius gives the crane practical reach when it cannot be positioned directly next to the load. That helps on sites with tight access, fixed obstacles or limited setup space.
3. Fast Rope Handling
An 11 m/min winch hook rising speed in 4-rope mode, together with a 12 mm x 100 m wire rope, supports steady lifting cycles and useful rope capacity for repeated daily handling work.
4. Compact Machine Size
With a machine size of 5,900 x 1,800 x 2,300 mm, the crane is built for jobs where access width matters. The 1,800 mm overall width helps it fit into more restricted work zones than larger conventional lifting equipment.
5. 76 kW Diesel Power
The Yunnei 76 kW engine gives the machine the power base needed for lifting operations while keeping a compact spider crane layout. A 10.5 t self-weight also reflects a heavier-duty platform for more demanding site work.
