Self weight:16.5T
Dimensions:7.35*2.13*2.68m
Maximum operating radius:23m

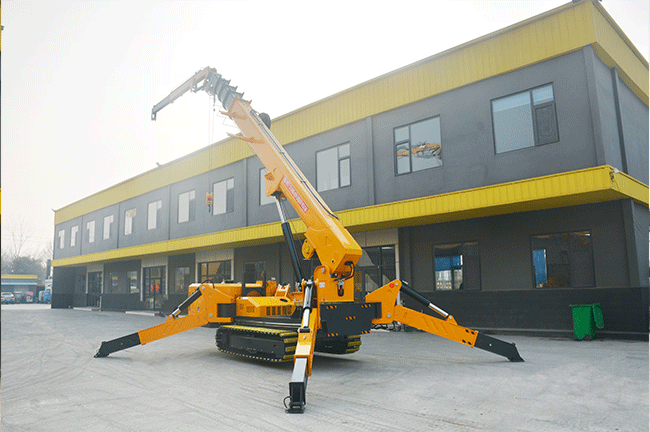

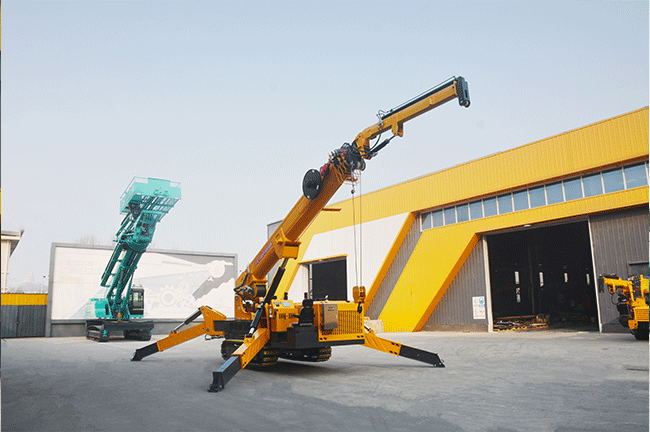

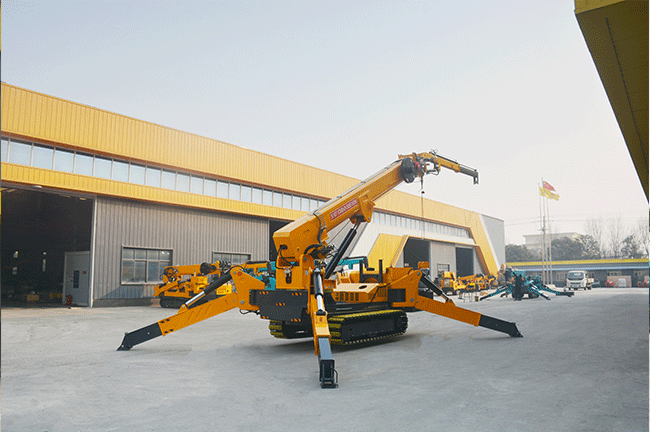

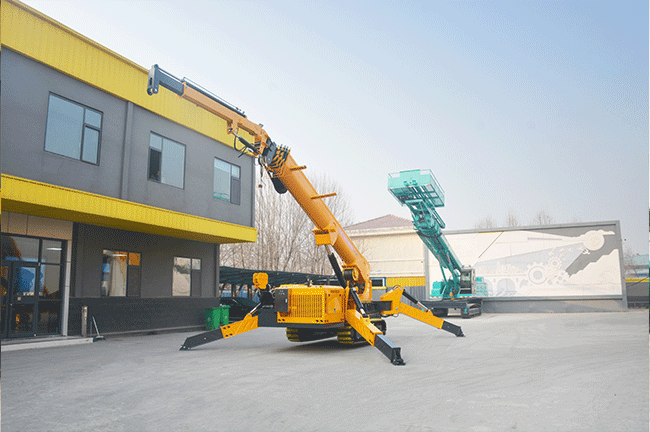

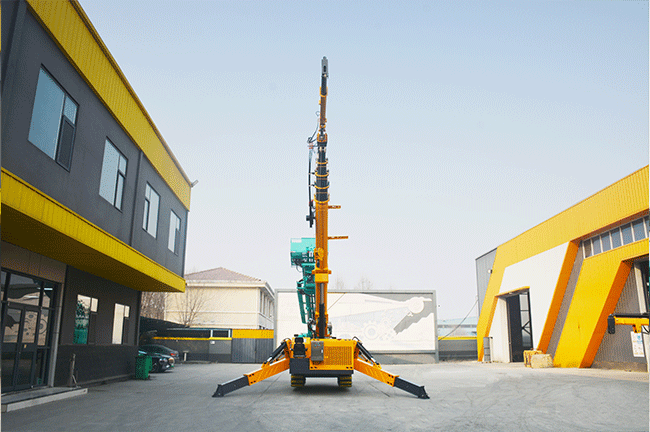

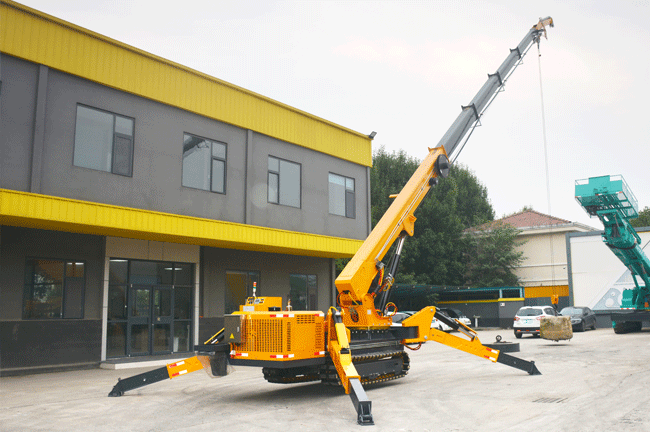

When conventional cranes cannot reach, the JTZD-16T goes in. With a 16 t rated hoist, 25 m maximum lift height and a 2,130 mm-wide chassis, it is built for confined spaces, indoor lifting and complex terrain where larger cranes are harder to position.
| Model | JTZD-16T |
| Self-Weight | 16.5 t |
| Maximum Operating Radius | 23 m |
| Maximum Above-Ground Lift | 25 m |
| Winch Hook Rising Speed | 10 m/min (4-rope), two-speed |
| Winch Wire Rope Specification | 12 mm x 160 m |
| Boom Length / Time | 12.3 m / 40 sec |
| Telescopic Boom Form | 6 m x 5-section lifting arm |
| Engine | Yuchai 85 kW |
| Battery Capacity | 12 V 45 Ah |
| Machine Size | 7,350 x 2,130 x 2,680 mm |
A 16 t rated hoist with 25 m maximum lift height gives the JTZD-16T the capacity needed for heavier lifting work on steel structures, facade panels, plant equipment and other demanding installation jobs.
The 23 m maximum operating radius also helps the crane work around obstacles while maintaining a safer machine position outside tight lifting zones.
The two-speed winch delivers a hook rising speed of 10 m/min in 4-rope configuration, helping shorten lift cycles while keeping load handling controlled and precise.
A 12 mm x 160 m wire rope setup supports stable lifting performance across higher and longer-reach applications.
The boom length and extension time of 12.3 m / 40 sec helps the crane respond faster on jobs that require repeated setup, repositioning and frequent lift changes throughout the shift.
The 6 m x 5-section lifting arm structure supports flexible working height adjustment without making the machine unnecessarily bulky.
With an overall machine size of 7,350 x 2,130 x 2,680 mm, the crane is easier to move into factories, building interiors and other restricted working areas where full-size cranes are difficult to deploy.
Its compact footprint makes it a more practical choice for projects where lifting performance and access need to be balanced at the same time.
A Yuchai 85 kW engine provides the output needed for lifting, travel and hydraulic operation on demanding worksites.
The 12 V 45 Ah battery supports dependable starting and daily operating readiness for routine field use.
