JTZD-2T Spider Crane

Overview

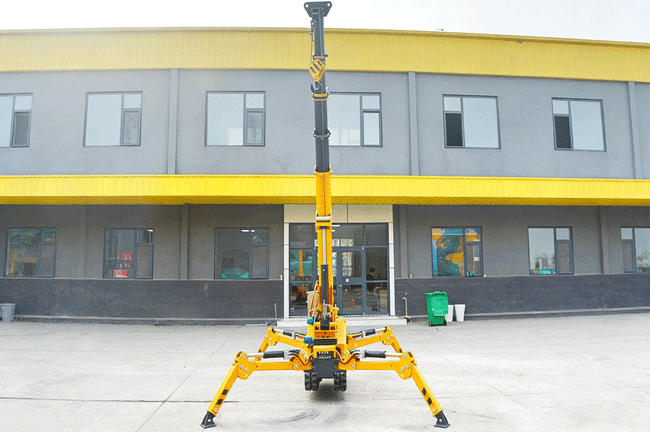

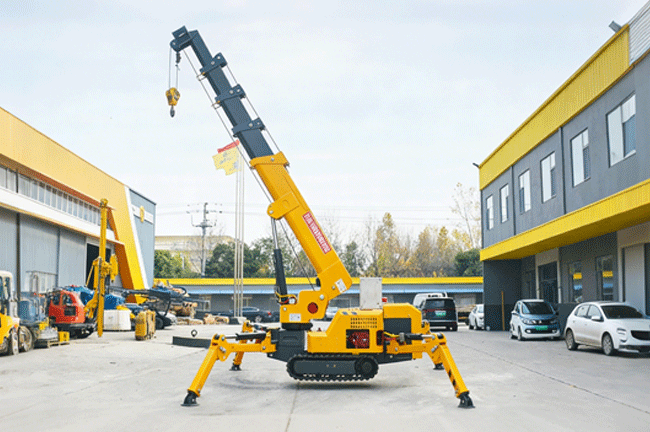

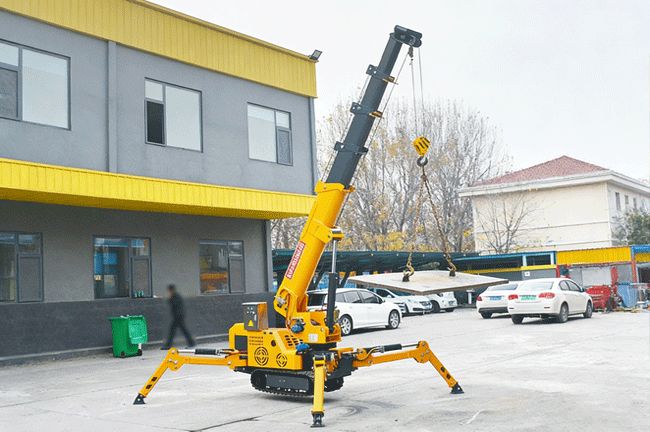

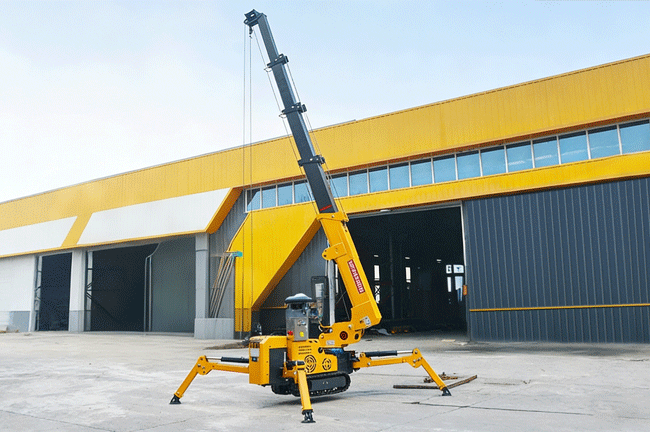

The JTZD-2T is a crawler spider crane built for lifting work where compact transport size, working radius and lift height all matter. With a 2 t lifting class, 6 m maximum operating radius and 6.5 m maximum above-ground lift, it is suited to equipment installation, indoor lifting and narrow-access job sites.

Its 1.8 t self-weight and 2.78 x 0.71 x 1.62 m machine size keep the body compact for tighter working conditions. The crane also combines a 6.5 m boom, 0-8 m/min winch speed, AC380V electrical supply, Gasoline / 8 L fuel support and a 12 V 45 Ah battery for daily lifting operations.

Specifications

Key Features

1. 2-Ton Lift

The JTZD-2T is built in the 2 t lifting class for compact lifting work where more load capacity is needed in limited-access spaces.

2. 6.5 m Height

A 6.5 m maximum above-ground lift gives the crane the vertical reach needed for installation, maintenance and site lifting tasks.

3. 6 m Radius

With a 6 m maximum operating radius, the crane can cover a practical working area before repositioning on site.

4. Fast Boom Setup

The 6.5 m boom reaches working height in 20 seconds, helping the machine shift into lifting position quickly.

5. Compact Body

A 2.78 x 0.71 x 1.62 m machine size and 1.8 t self-weight help the crane enter tighter work zones while keeping a stronger lifting class.

6. Winch Control

The crane uses 0-8 m/min winch speed with a 4-rope setup and 8 mm x 45 m wire rope for controlled lifting operations.

Get a Quote

Contact us for full lifting data, configuration details and a quote based on your project requirements.
