Self weight:8.7T
Dimensions:6.15*1.6*2.25m
Maximum operating radius:18m

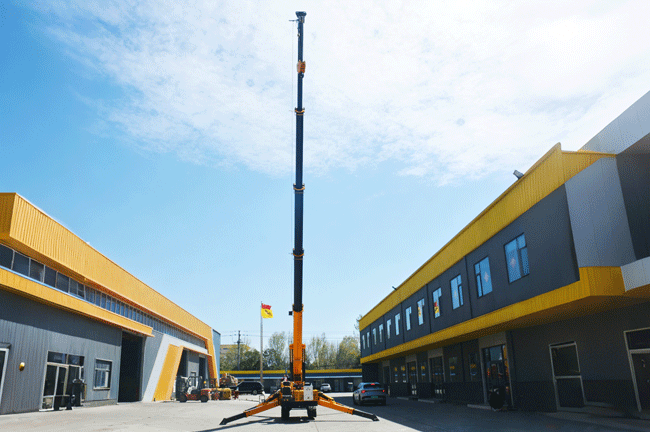

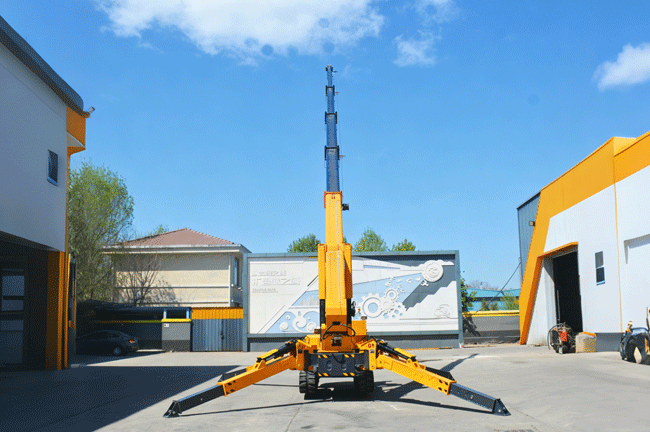

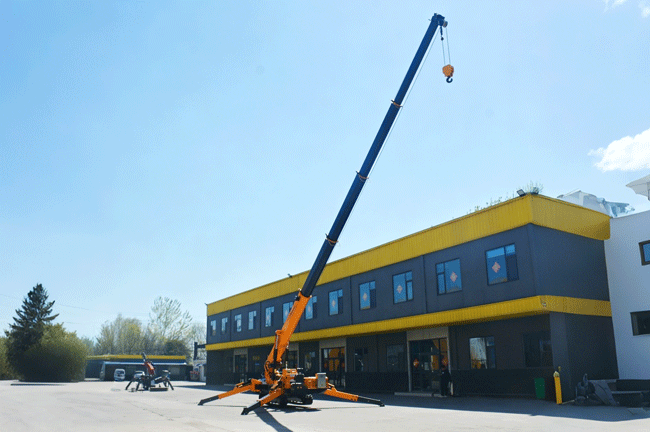

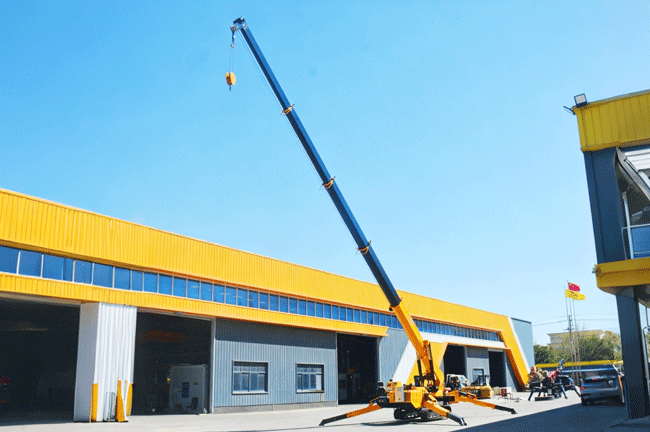

The JTZD-8T is a crawler spider crane built for heavier lifting in job sites where transport size and working reach both matter. With an 8 t rated lifting capacity, 18 m maximum operating radius and 21 m maximum lift height, it is suited to high-reach lifting, equipment positioning and structural installation work.
Its 8.7 t self-weight and 6.15 x 1.6 x 2.25 m machine size give it a stronger heavy-duty base while keeping the transport width to 1.6 m. The crane also combines a 5.5-21 m adjustable boom, 12 m/min two-speed winch and AC380V electrical system for daily lifting operations.
| Model | JTZD-8T |
| Self-Weight | 8.7 t |
| Maximum Operating Radius | 18 m |
| Maximum Above-Ground Lift | 21 m |
| Winch Hook Rising Speed | 12 m/min (4-rope), two-speed |
| Winch Wire Rope Specification | 12 mm x 80 m |
| Boom Length / Time | 5.5-21 m / 54 sec (adjustable) |
| Electrical Voltage | AC380V |
| Fuel / Volume | Diesel / 35 L |
| Battery Capacity | 12 V 45 Ah |
| Machine Size | 6.15 x 1.6 x 2.25 m |
1. 8-Ton Lift
The JTZD-8T delivers an 8 t rated lifting capacity, making it the strongest model in this series for heavier on-site lifting work.
2. 21 m Height
A 21 m maximum above-ground lift gives the crane the reach needed for higher installation and lifting tasks.
3. 18 m Radius
With an 18 m maximum operating radius, the crane can cover a wider working area before repositioning.
4. Fast Boom Setup
The adjustable boom extends from 5.5 m to 21 m in 54 seconds, helping the machine move between lifting ranges more efficiently.
5. Strong Winch Line
The winch runs at 12 m/min in a two-speed, 4-rope setup and uses 12 mm x 80 m wire rope for lifting operations.
6. Heavy-Duty Base
An 8.7 t self-weight and 6.15 x 1.6 x 2.25 m machine size give the JTZD-8T a stronger base for heavy-duty site work while keeping transport width relatively controlled.
Contact us for full lifting data, configuration details and a quote based on your project requirements.
