Self weight:12.5T
Dimensions:6.15*1.86*2.48m
Maximum operating radius:19m

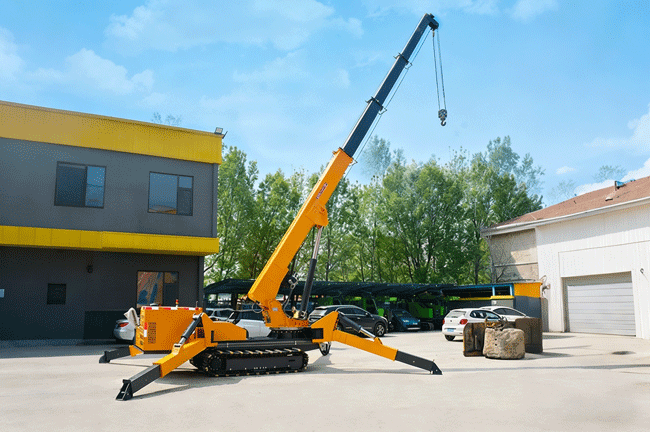

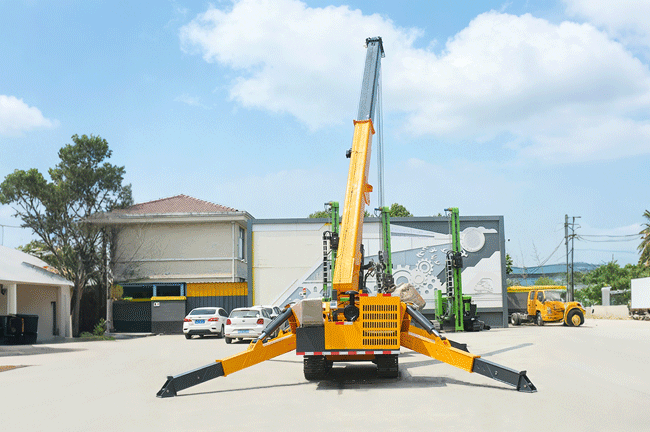

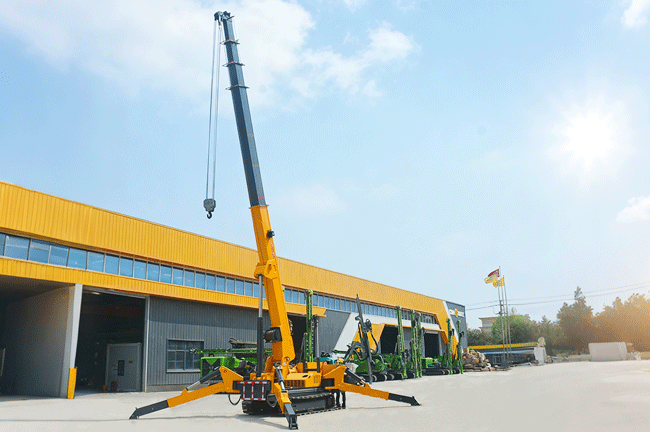

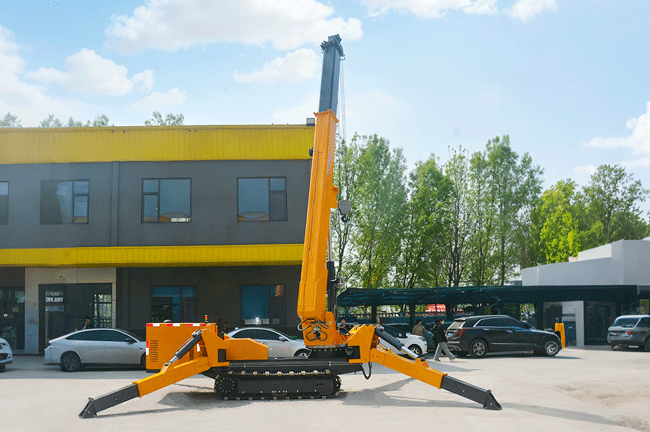

When conventional cranes cannot reach, the JTZD-10T goes in. With a 10 t rated hoist, 21 m maximum lift height and a slim 1,800 mm-wide chassis, it is built for confined spaces, indoor lifting and complex terrain where larger cranes cannot operate efficiently.
| Model | JTZD-12T |
| Self-Weight | 12.5 t |
| Maximum Operating Radius | 19 m |
| Maximum Above-Ground Lift | 21 m |
| Winch Hook Rising Speed | 10 m/min (4-rope), two-speed |
| Winch Wire Rope Specification | 12 mm x 120 m |
| Boom Length / Time | 12.3 m / 60 sec |
| Telescopic Boom Form | 5 m x 5-section boom |
| Engine | Yunnei 76 kW |
| Battery Capacity | 12 V 45 Ah |
| Machine Size | 6,150 x 1,860 x 2,480 mm |
A 10 t rated hoist combined with 21 m maximum lift height gives this spider crane the reach and lifting strength needed for steel structures, facade panels, equipment installation and other demanding lifting tasks.
The 19 m maximum operating radius also helps the machine work around obstacles while keeping the crane positioned away from restricted or sensitive areas.
The two-speed winch delivers a hook rising speed of 10 m/min in 4-rope configuration, helping reduce lift cycle time while maintaining controlled operation on precision jobs.
A 12 mm x 120 m wire rope setup supports stable lifting performance across high-reach and longer-distance applications.
The boom extends to 12.3 m in 60 seconds, giving operators a practical advantage on jobs that require frequent repositioning and repeated setup throughout the day.
The 5 m x 5-section boom structure supports flexible height adjustment without adding unnecessary machine bulk.
With an overall machine size of 6,150 x 1,860 x 2,480 mm, the crane is easier to position in workshops, plant corridors, building interiors and other space-restricted work areas.
Its compact transport and working footprint makes it more practical for contractors handling lifts where access is as challenging as the load itself.
A Yunnei 76 kW engine provides the output needed for lifting operations, travel and hydraulic movement on demanding sites.
The 12 V 45 Ah battery supports reliable machine start-up and daily operating readiness.
