JTZD-3T Spider Crane

Overview

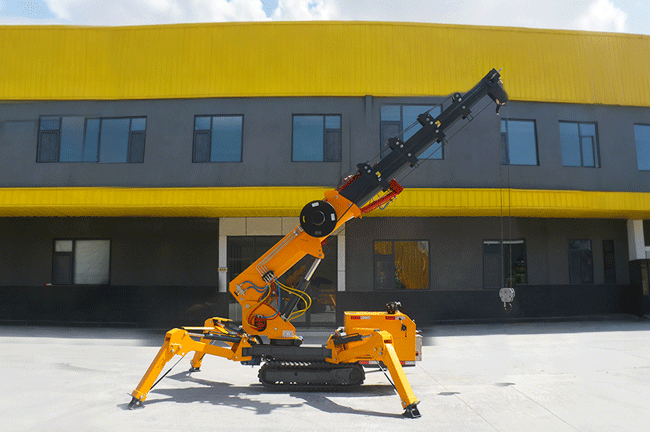

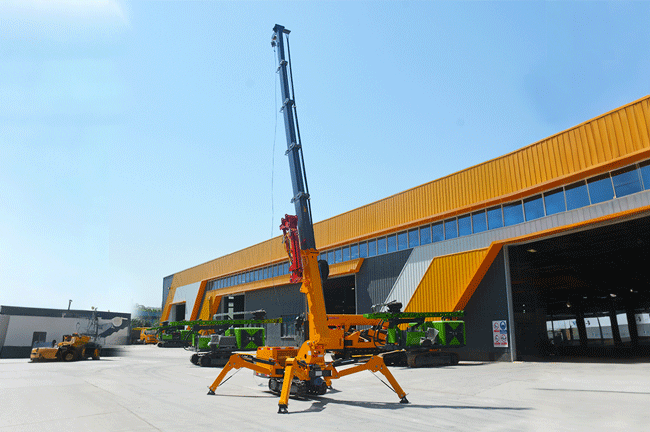

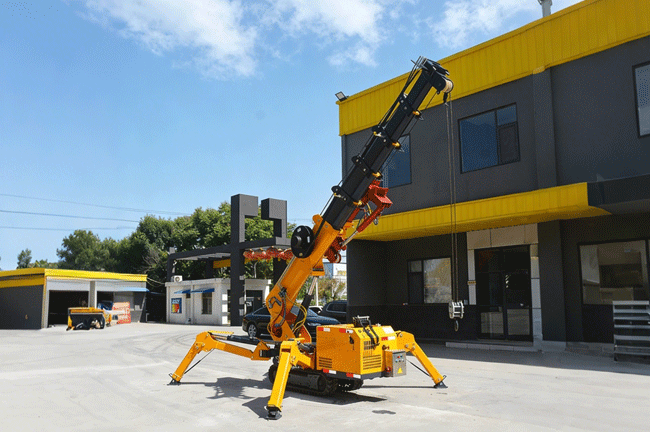

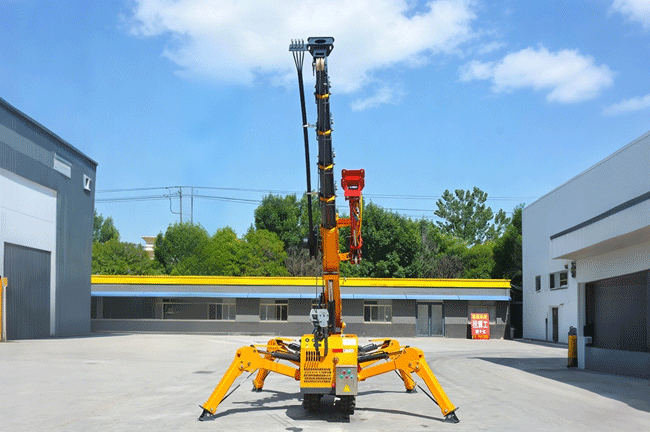

The JTZD-3T is a crawler spider crane built for lifting work where compact transport size, working radius and lift height all matter. With a 3 t lifting class, 10 m maximum operating radius and 10.8 m maximum above-ground lift, it is suited to plant installation, indoor lifting and narrow-access job sites.

Its 2.7 t self-weight and 3.5 x 0.8 x 1.85 m machine size keep the body compact for tighter working conditions. The crane also combines a 3.1-10.8 m adjustable boom, 0-8 m/min winch speed, AC380V electrical supply, Diesel / 12 L fuel support and a 12 V 45 Ah battery for daily lifting operations.

Specifications

Key Features

1. 3-Ton Lift

The JTZD-3T is built in the 3 t lifting class for heavier compact lifting work where stronger load handling is needed in limited-access spaces.

2. 10.8 m Height

A 10.8 m maximum above-ground lift gives the crane the vertical reach needed for equipment installation, maintenance and structural lifting work.

3. 10 m Radius

With a 10 m maximum operating radius, the crane can cover a practical working area before repositioning on site.

4. Fast Boom Setup

The adjustable boom extends from 3.1 m to 10.8 m in 20 seconds, helping the machine shift between lifting ranges quickly.

5. Compact Body

A 3.5 x 0.8 x 1.85 m machine size and 2.7 t self-weight help the crane enter tighter work zones while keeping a stronger lifting class.

6. Winch Control

The crane uses 0-8 m/min winch speed with a 4-rope setup and 8 mm x 45 m wire rope for controlled lifting operations.

Get a Quote

Contact us for full lifting data, configuration details and a quote based on your project requirements.
