JTZD-5T Spider Crane

Overview

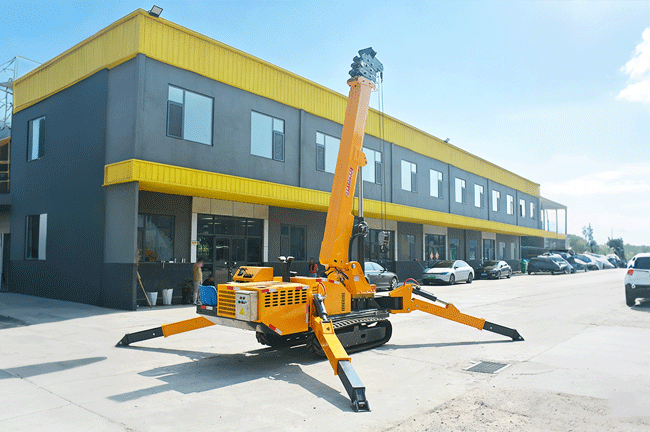

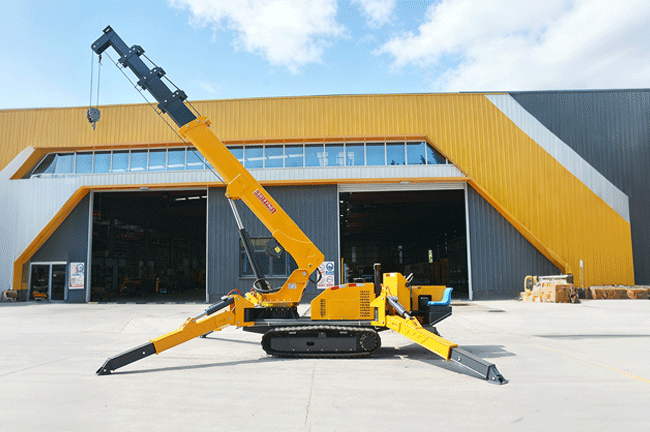

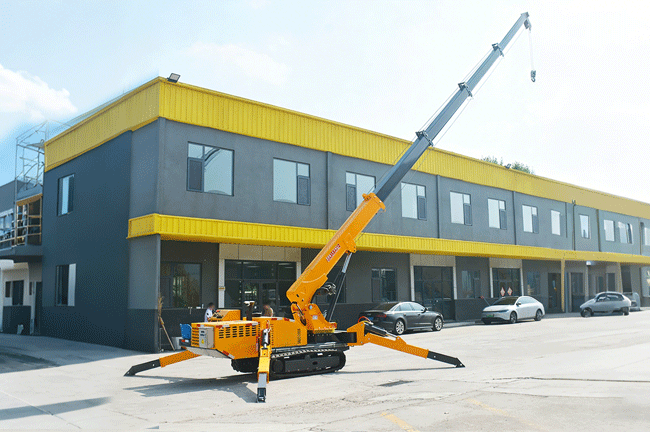

The JTZD-5T is a crawler spider crane built for heavier lifting where working radius and lift height both matter. With a 5 t rated lifting capacity, 15 m maximum operating radius and 17 m maximum above-ground lift, it is suited to structural lifting, equipment positioning and other higher-reach site work.

Its 6.7 t self-weight and 4.7 x 1.5 x 2.25 m machine size provide a stronger heavy-duty base while keeping the transport width to 1.5 m. The crane also combines a 4.5-17 m adjustable boom, 12 m/min two-speed winch and AC380V electrical system for daily lifting operations.

Specifications

Key Features

1. 5-Ton Lift

The JTZD-5T delivers a 5 t rated lifting capacity for heavier site lifting tasks than smaller spider crane models.

2. 17 m Height

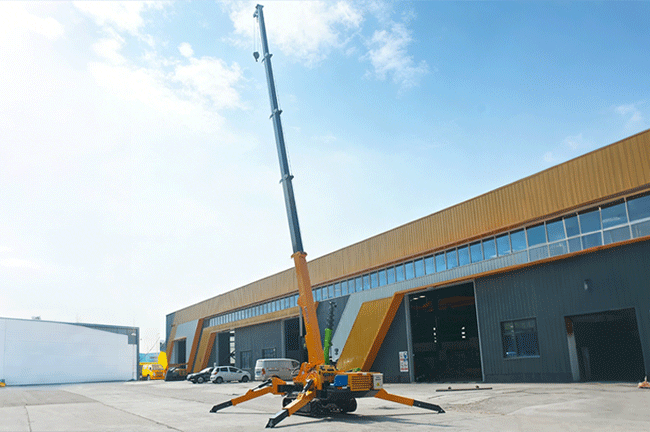

A 17 m maximum above-ground lift gives the crane the reach needed for higher installation and lifting work.

3. 15 m Radius

With a 15 m maximum operating radius, the crane can cover a wider working area before repositioning.

4. Fast Boom Setup

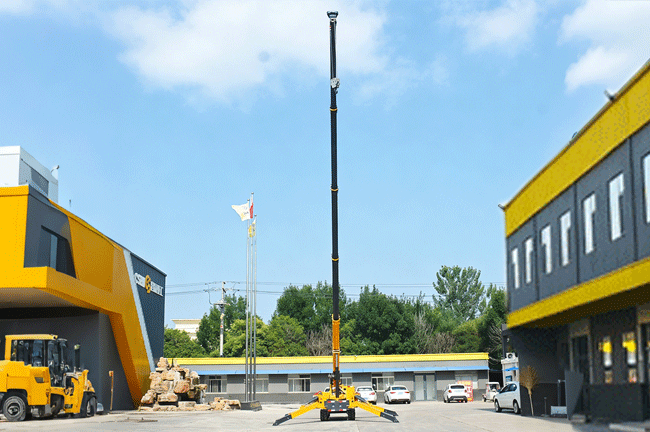

The adjustable boom extends from 4.5 m to 17 m in 54 seconds, helping the machine shift between lifting ranges more efficiently.

5. Strong Winch Line

The winch runs at 12 m/min in a two-speed, 4-rope setup and uses 11 mm x 60 m wire rope for lifting operations.

6. Heavy-Duty Base

A 6.7 t self-weight and 4.7 x 1.5 x 2.25 m machine size give the JTZD-5T a stable base for heavier lifting work while keeping the body relatively compact.

Get a Quote

Contact us for full lifting data, configuration details and a quote based on your project requirements.
